Web Programming Step by Step, 2nd Edition

Lecture 1: Internet/WWW

Reading: Ch. 1

Except where otherwise noted, the contents of this document are Copyright 2012 Marty Stepp, Jessica Miller, and Victoria Kirst. All rights reserved. Any redistribution, reproduction, transmission, or storage of part or all of the contents in any form is prohibited without the author's expressed written permission.

1.1: The Internet

1.1: The Internet
1.2: The World Wide Web (WWW)

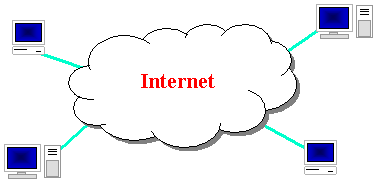

The Internet

Wikipedia: http://en.wikipedia.org/wiki/Internet
a connection of computer networks using the Internet Protocol (IP)
layers of communication protocols: IP → TCP/UDP → HTTP/FTP/POP/SMTP/SSH...
What's the difference between the Internet and the World Wide Web (WWW)?

the Web is the collection of web sites and pages around the world; the Internet is larger and also includes other services such as email, chat, online games, etc.

Brief history

began as a US Department of Defense network called ARPANET (1960s-70s)
initial services: electronic mail, file transfer
opened to commercial interests in late 80s
WWW created in 1989-91 by Tim Berners-Lee
popular web browsers released: Netscape 1994, IE 1995
Amazon.com opens in 1995; Google January 1996
Hamster Dance web page created in 1999

Key aspects of the internet

subnetworks can stand on their own
computers can dynamically join and leave the network
built on open standards; anyone can create a new internet device
lack of centralized control (mostly)
everyone can use it with simple, commonly available software

People and organizations

Internet Engineering Task Force (IETF): internet protocol standards
Internet Corporation for Assigned Names and Numbers (ICANN):
decides top-level domain names
World Wide Web Consortium (W3C): web standards

Internet Protocol (IP)

a simple protocol for attempting to send data between two computers

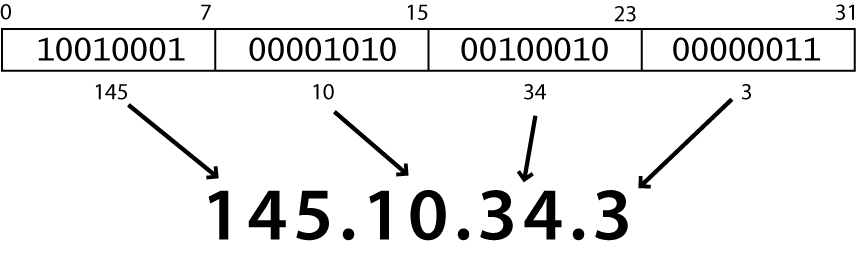

each device has a 32-bit IP address written as four 8-bit numbers (0-255)
find out your internet IP address: whatismyip.com
find out your local IP address:
- in a terminal, type: ipconfig (Windows) or ifconfig (Mac/Linux)

Transmission Control Protocol (TCP)

adds multiplexing, guaranteed message delivery on top of IP
multiplexing: multiple programs using the same IP address
- port: a number given to each program or service
- port 80: web browser (port 443 for secure browsing)
- port 25: email
- port 22: ssh
- port 5190: AOL Instant Messenger
- more common ports
some programs (games, streaming media programs) use simpler UDP protocol instead of TCP

1.2: The World Wide Web (WWW)

1.1: The Internet
1.2: The World Wide Web (WWW)

Web servers and browsers

web server: software that listens for web page requests
- Apache
- Microsoft Internet Information Server (IIS) (part of Windows)

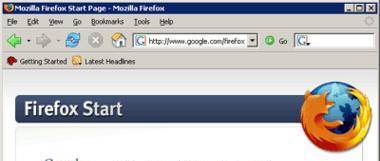

web browser: fetches/displays documents from web servers
- Mozilla Firefox
- Microsoft Internet Explorer (IE)
- Apple Safari
- Google Chrome
- Opera

Domain Name System (DNS)

a set of servers that map written names to IP addresses
- Example: www.cs.washington.edu → 128.208.3.88
many systems maintain a local cache called a hosts file
- Windows: C:\Windows\system32\drivers\etc\hosts
- Mac: /private/etc/hosts
- Linux: /etc/hosts

Uniform Resource Locator (URL)

an identifier for the location of a document on a web site

a basic URL:

http://www.aw-bc.com/info/regesstepp/index.html
~~~~   ~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~
protocol    host                path

upon entering this URL into the browser, it would:
- ask the DNS server for the IP address of www.aw-bc.com
- connect to that IP address at port 80
- ask the server to GET /info/regesstepp/index.html
- display the resulting page on the screen

Hypertext Transport Protocol (HTTP)

the set of commands understood by a web server and sent from a browser
some HTTP commands (your browser sends these internally):
- GET filename : download
- POST filename : send a web form response
- PUT filename : upload

simulating a browser with a terminal window:

$ telnet www.cs.washington.edu 80
Trying 128.208.3.88...
Connected to 128.208.3.88 (128.208.3.88).
Escape character is '^]'.
GET /index.html
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 ...">
<html>
...

HTTP error codes

when something goes wrong, the web server returns a special "error code" number to the browser, possibly followed by an HTML document

common error codes:

Number	Meaning
200	OK
301-303	page has moved (permanently or temporarily)
403	you are forbidden to access this page
404	page not found
500	internal server error
complete list

Web languages / technologies

Hypertext Markup Language (HTML): used for writing web pages
Cascading Style Sheets (CSS): stylistic info for web pages
PHP Hypertext Processor (PHP): dynamically create pages on a web server
JavaScript: interactive and programmable web pages
Asynchronous JavaScript and XML (Ajax): accessing data for web applications
eXtensible Markup Language (XML): metalanguage for organizing data
Structured Query Language (SQL): interaction with databases

2.1: Basic HTML

2.1: Basic HTML
2.2: More HTML Elements
2.3: Web Standards

Hypertext Markup Language (HTML)

describes the content and structure of information on a web page
- not the same as the presentation (appearance on screen)
surrounds text content with opening and closing tags
each tag's name is called an element
- syntax: <element> content </element>
- example: <p>This is a paragraph</p>
most whitespace is insignificant in HTML (ignored or collapsed to a single space)
we will use a newer version called HTML5

Structure of an HTML page

<!DOCTYPE html>
<html>
	<head>
		information about the page
	</head>

	<body>
		page contents
	</body>
</html>

the header describes the page and the body contains the page's contents
an HTML page is saved into a file ending with extension .html
DOCTYPE tag tells browser to interpret our page's code as HTML5, the latest/greatest version of the language

Page title: `<title>`

describes the title of the web page

<title>Chapter 2: HTML Basics</title>

placed within the head of the page
displayed in the web browser's title bar and when bookmarking the page

Paragraph: `<p>`

paragraphs of text (block)

<p>You're not your job.
You're not how much money you have in the bank.
You're not the car you drive.   You're not the contents
of your wallet. You're not your         khakis.  You're
   the all-singing, all-dancing crap of the world.</p>

placed within the body of the page
more paragraph examples

Headings: `<h1>`, `<h2>`, ..., `<h6>`

headings to separate major areas of the page (block)

<h1>University of Whoville</h1>
<h2>Department of Computer Science</h2>
<h3>Sponsored by Micro$oft</h3>

More heading examples
